How to Install HardieBacker: Floor Preparation Guide


How to Install HardieBacker: Floor Preparation Guide

Floor Preparation

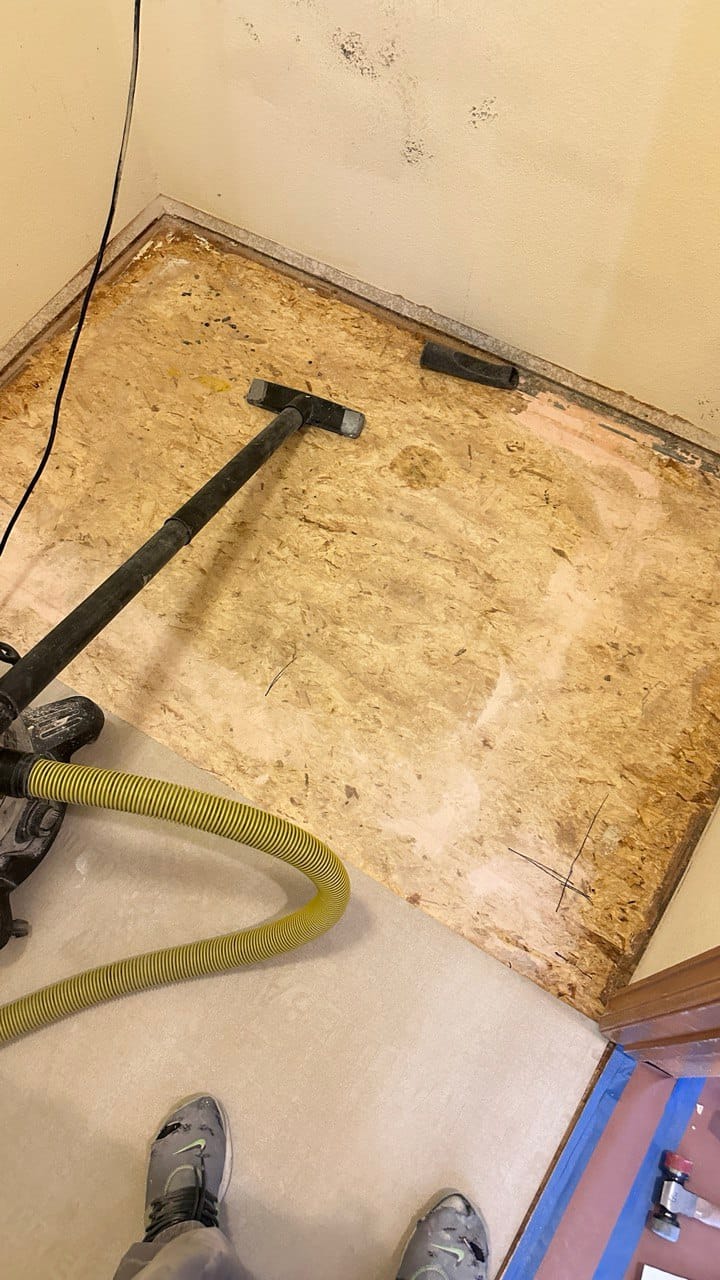

Subfloor preparation with a vacuum cleaner during a tile installation project

  • Remove any existing flooring down to the subfloor
  • Ensure subfloor is dry, clean and free of debris
  • Fix any squeaks or loose sections with screws
  • Verify subfloor is minimum 5/8″ thick plywood or 3/4″ OSB
  • Locate and mark floor joists for reference

Cutting HardieBacker

  • Measure space and mark your cuts
  • Score one side with utility knife using straight edge
  • Snap board along score line
  • For holes (like for toilet flange), use hole saw or jigsaw
  • Tip: Cut outdoors or in well-ventilated area with dust mask

Dry Fitting

  • Test fit all pieces before mixing mortar
  • Leave 1/8″ gap at walls for expansion
  • Ensure proper fit around any plumbing fixtures
  • Stagger joints between sheets
  • Don’t place joints over subfloor seams

Mortar Application

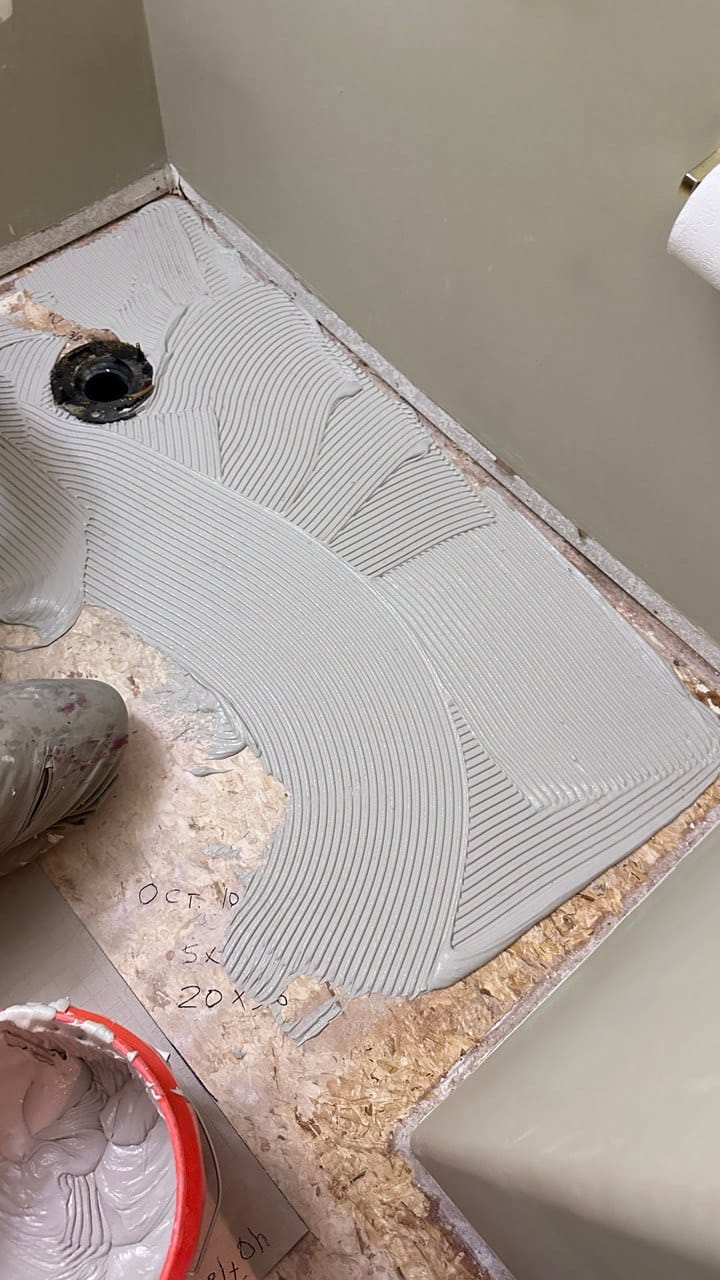

As shown in Image 2:

  • Mix modified thinset mortar according to instructions
  • Use 1/4″ x 1/4″ notched trowel
  • Apply in curved sweeping pattern
  • Only spread enough for one board at a time
  • Ensure full coverage with no bare spots

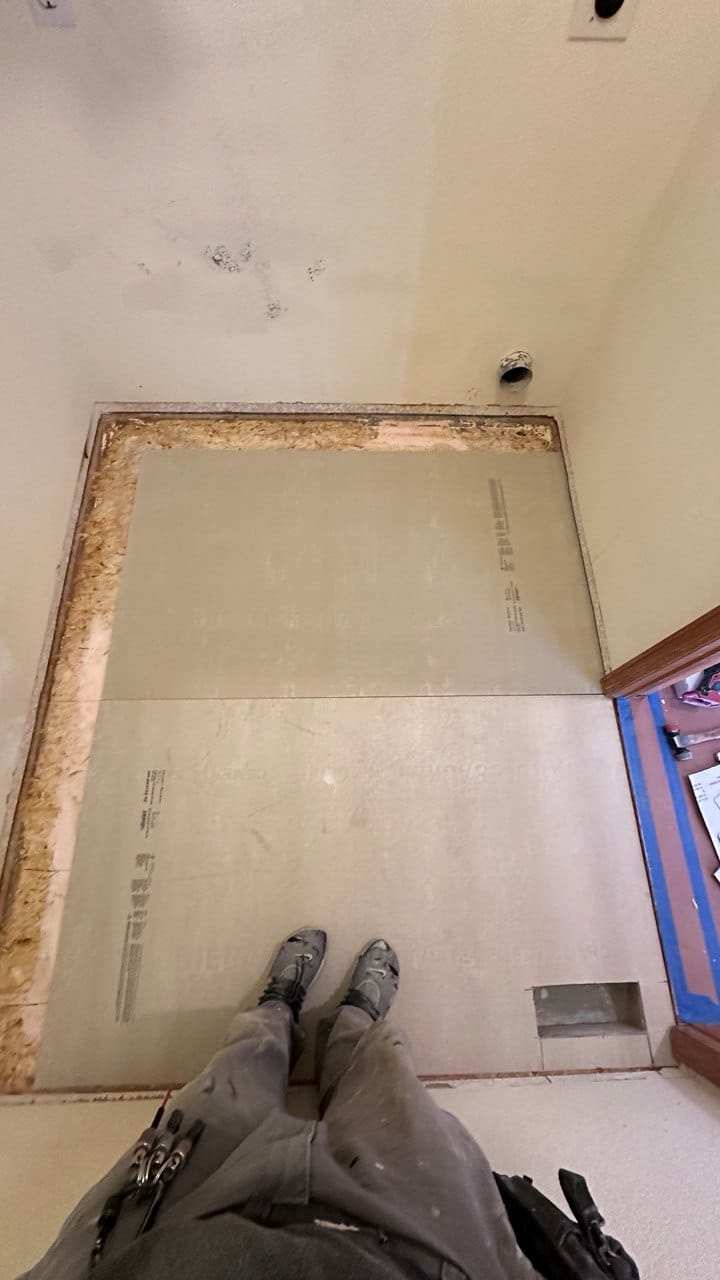

Board Installation

  • Place HardieBacker onto wet mortar
  • Press firmly and evenly across surface
  • Start fastening from center, working outward
  • Use HardieBacker screws or 1-1/4″ galvanized roofing nails
  • Space fasteners every 8″ on center
  • Keep fasteners 3/8″ from edges
  • Countersink slightly but don’t break surface

Joints and Seams

  • Fill all joints with mortar
  • Apply alkali-resistant mesh tape over joints
  • Cover tape with thin layer of mortar
  • Let cure completely before tiling

Required Tools

Visible in Image 1:

  • Notched trowel
  • Vacuum/cleanup equipment
  • Drill/screw gun
  • Measuring tools
  • Utility knife
  • Safety equipment (mask, glasses, gloves)

Important Tips

  • Don’t reuse old backer board
  • Always use modified thinset mortar
  • Keep surface clean as you work
  • Allow proper cure time before next steps
  • Use proper ventilation
  • Clean tools frequently
